Wire Links 7, 8, 9, and 10
by Judy Larson
  • Category: Findings
  • Technique(s): Butane Torch Techniques
  • Skill Level: Intermediate
Here are 4 more wire links. Use them for bracelets, necklace chains, or earrings.

Materials

20 Gauge Round Dead Soft Argentium .930 Silver Wire
H19-20D
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 1FT
  • Price: $2.28
  • Gold Club Price: $1.71
Add to Bag
14 Gauge Round Dead Soft Argentium .930 Silver Wire
H19-14D
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 1FT
  • Price: $8.63
  • Gold Club Price: $6.47
Add to Bag
16 Gauge Round Dead Soft Argentium .930 Silver Wire
H19-16D
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 1FT
  • Price: $5.55
  • Gold Club Price: $4.16
Add to Bag
16 Gauge Square Dead Soft Argentium .930 Silver Wire
H19-16SQD
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 1FT
  • Price: $7.12
  • Gold Club Price: $5.34
Add to Bag
Sterling Silver Ball Chain 2mm - 10 Feet
C8-112U
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $111.00
  • Gold Club Price: $83.25
Add to Bag
Sterling Silver Ball Chain 1.5mm - 10 Feet
C8-111U
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $62.40
  • Gold Club Price: $46.80
Add to Bag
Add All Items to Cart

Tools

Wubbers Medium Bail Making Pliers
G2-1302
  • G2-1302
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $27.95
  • Gold Club Price: $20.96
Add to Bag
Wubbers X-Large Round Mandrel Pliers
G2-1304
  • G2-1304
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $35.97
  • Gold Club Price: $26.98
Add to Bag
Wubbers Large Bail Making Pliers
G2-1303
  • G2-1303
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $27.97
  • Gold Club Price: $20.98
Add to Bag
5 1/2 Inch Nylon Flat Jaw Pliers with Replacement Jaws
G2-1
  • G2-1
  • Lesson Quantity: 2.00 pieces
  • Purchase Quantity: 2.00 each
  • Price: $9.97
  • Gold Club Price: $7.48
Out of Stock
Solderite Soldering Board 6 Inch by 6 Inch Soft
SOL-421.10
  • SOL-421.10
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $12.95
  • Gold Club Price: $9.71
Add to Bag
Magnesia Soldering Block
SOL-455.00
  • SOL-455.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $7.95
  • Gold Club Price: $5.96
Add to Bag
Single 3rd Hand with Tweezer and Base
HOL-165.00
  • HOL-165.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $18.97
  • Gold Club Price: $14.23
Add to Bag
Blazer Big Buddy Turbo Torch, White
TRCH-8012
  • TRCH-8012
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $40.00
  • Gold Club Price: $30.00
Add to Bag
Silver Solder Paste Medium SS70 - 1/4 T.O.
SOL-822.15
  • SOL-822.15
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $18.95
  • Gold Club Price: $14.21
Add to Bag
Steel Bench Block 4x4 Inch - Pack of 1
G17-10
  • G17-10
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $21.95
  • Gold Club Price: $16.46
Add to Bag
7 Piece Mini TruStrike Hammer Set with Stand
HAM-520.70
  • HAM-520.70
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $140.54
  • Gold Club Price: $105.40
Add to Bag
C.H.P Milano Italian Flush Cutter, 5 1/2 Inches
PLR-487.00
  • PLR-487.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $16.97
  • Gold Club Price: $12.73
Add to Bag
Basic Sawing Kit
G15-7
  • G15-7
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $34.95
  • Gold Club Price: $26.21
Add to Bag
Pickle Pot, 16 Ounces
CLN-584.00
  • CLN-584.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $31.95
  • Gold Club Price: $23.96
Add to Bag
NATURE'S TOUCH CITRIC PICKLE, 2LB PLASTIC JAR
CLN-163.00
  • CLN-163.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $16.95
  • Gold Club Price: $12.71
Out of Stock
Thumlers Tumbler Model AR-1 Rock Tumbler Kit
G34-102
  • G34-102
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $204.18
  • Gold Club Price: $153.14
Out of Stock
10 Piece Diamond Needle Files - 140mm X 3mm
G14-8
  • G14-8
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $13.57
  • Gold Club Price: $10.18
Out of Stock
Add All Items to Cart
Instructions
Step 1:
Link 7 - two versions
Read through directions before starting the project.
Make a coil with 14 (used here) or 16 gauge round wire on the smallest mandrel section of a Large Wrap 'N' Tap pliers. Make a coil with 16 gauge round wire on the larger side of a Wubbers Medium Round Mandrel Pliers.
Judy Larson's Wire Links 7, 8, 9, and 10 - Link 7 - two versions, Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 2
Cut the coils into jump rings using your preferred method for cutting jump rings.
Step 3
Close the larger jump rings. Two flat nose pliers or a flat nose and chain nose pliers are usually used to close jump rings. However, it may be easier to use two inexpensive wide flat nose pliers to close the larger jump rings used here. It is important that the cut ends of each jump ring are perfectly flush or the ring seams will not fuse or connect well with solder.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 4
Space the closed rings out on a Solderite board. Fuse the ring seams or use a small bit of medium paste solder under each seam and heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links

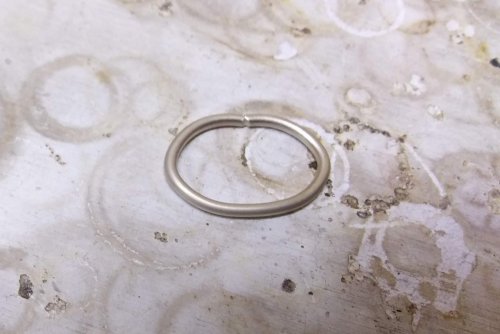

Step 5
Use a round nose pliers to stretch the round links into an oval shape. Try to place the ring seam where the center of the link will be so it will be covered with embellishments. Keep checking the seam during the process. If it looks like the seam is opening, fuse again or resolder the seam.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 6
Leaving the oval ring on the round nose pliers, use flat nose pliers to press the wire centers together. Flat nose pliers can leave dents in the oval ring. If not covering the center of the squashed oval ring, round nose or soft jaw round nose pliers would be better to use.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links

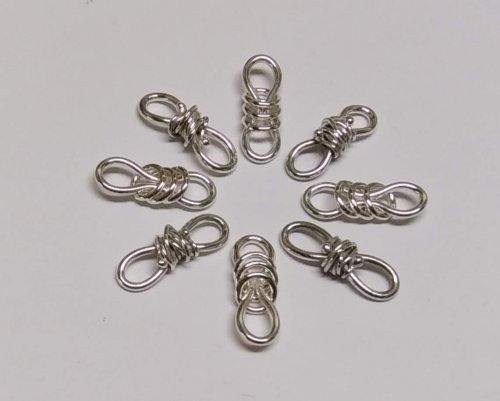

Step 7
Version A
Open three smaller jump rings. One at a time, place a small jump ring on the center of the squashed oval ring and close it. There is no need to solder these rings closed as they are not structural parts.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links

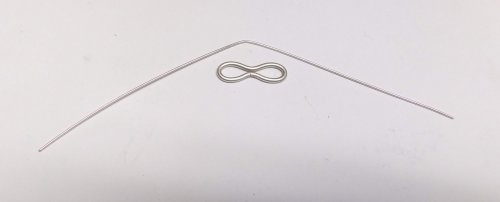

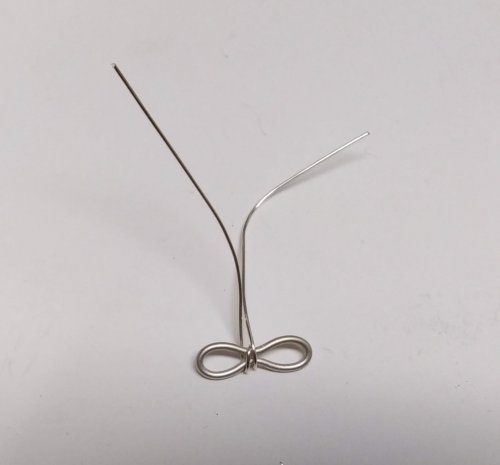

Step 8
Version B
Cut a 6" length of 20 gauge round wire for each link. Bend in the center. Place the bent wire on the center of the stretched link. Make a messy wrap with the wire, crossing the wires a few times. Stop wrapping when the wire tails are a bit more than 5/8" long on the same side of the link. Trim the wire tails to 5/8" in length from the outside of the wire wrap.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 9
Ball the ends of the wire to a point where the wire ends will wrap to the front of the link and be seen. If the balled ends stop on the side, or wrap over to the back side, they will not be as visible.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 10
Wrap the balled wire ends to the front of the link. Place a bit of medium paste solder on the wrapped wires that the balled ends touch. Heat until the solder flows and the balled wire ends are connected to the wraps. Use a solder pick to press them into place during soldering, if needed.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 11:
Link 8 - two versions
Make a coil with 14 (used here) or 16 gauge round wire on the larger side of a Wubbers Large Round Mandrel Pliers.
Step 12
Cut the coil into jump rings using your preferred method for cutting jump rings.
Step 13
Close the jump rings. Two flat nose pliers or a flat nose and chain nose pliers are usually used to close jump rings. However, it may be easier to use two inexpensive wide flat nose pliers to close the large jump rings used here. It is important that the cut ends of each jump ring are perfectly flush or the ring seams will not fuse or connect well with solder.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 14
Space the closed rings out on a Solderite board. Fuse the ring seams or use a small bit of medium paste solder under each seam and heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 15
Lightly flatten all the fused/soldered rings on a bench block using a Mini TruStrike Designer/Texture Hammer or any flat faced hammer. It does not matter if the hammer face is not smooth because each ring will be textured. The slight flattening helps keep the texturing hammer from sliding off the rounded top of the ring when texturing. Use the Mini TruStrike Sharp Designer Hammer to texture around the ring.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 16
Version A
Ball one 3/8" length and one 7/8" length of 18 gauge wire on a magnesia solder brick for each link. Clean and flatten the backs of each ball on 320 grit sandpaper on a bench block.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 17
Place a small amount of medium paste solder the inside edge of the ring. Place the larger ball inside the ring, flat side down, and push into the solder. Hold the ball and ring in place and put a bit more medium paste solder on the ring next to the ball and on the larger ball where the smaller ball will touch. Push the smaller ball into place, flat side down, up against the ring and the larger ball. Heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 18
Version B
The water cast "flowers" used in this version are from my stash. Watch wirejewelry's Low Tech Casting with Kim St. Jean for directions on how to make them.

Place a small amount of medium paste solder on one section of a ring. Press a small water casting into it. One may look great. If not, decide where the next water casting will go, place more medium paste solder on the ring and press the casting into it. Heat until the solder flows. Keep a solder pick handy to nudge the water castings back into place if they move from the force of the flame. Hint: The backs of the water casting may be a bit too rounded to sit flat so file a small flat area on them if needed.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 19:
Link 9
Make a coil with 16 gauge round wire on the smaller side of a Wubbers Extra Large Round Mandrel Pliers. Any size outer ring will work to make this link. The fun smashed bead rings were made with 9.5mm ID 16 gauge jump rings and 2mm ball chain. The tiny ones were made with 7.5mm 16 gauge jump rings and 1.5mm ball chain.
Step 20
Cut the coil into jump rings using your preferred method for cutting jump rings.

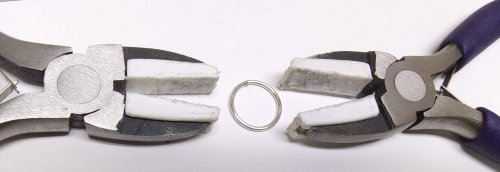

Step 21
Close the jump rings. Two flat nose pliers or a flat nose and chain nose pliers are usually used to close jump rings. However, it may be easier to use two inexpensive wide flat nose pliers to close the large jump rings used here. It is important that the cut ends of each jump ring are perfectly flush or the ring seams will not fuse or connect well with solder.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 22
Space the closed rings out on a Solderite board. Fuse the ring seams or use a small bit of medium paste solder under each seam and heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 23
Cut a length of ball chain to fit inside the ring. Don't worry if it is cut a ball too short or long. Because it is ball chain and not wire, the ball chain can easily stretch out or contract to make it fit the space.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 24
Spread medium paste solder around the inner edge of the ring.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 25
Place the ball chain inside the ring and press into the paste solder, making sure that the balls touch the inner edge of the ring. Heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 26
If the ball chain ring is to be flattened, place it on a bench block. Use a smooth flat faced hammer to lightly tap the surface of the ring until the desired look is achieved. If the chain becomes dislodged, heat it again until the solder re-flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 27
Link 10
Twist 12" of 16 gauge square wire. Hint: Twisted square wire to makes nice connector jump rings so twist more wire than needed.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 28
Because twisted wire is work hardened, anneal it so that it will be easier to form into coils.
Step 29
Make coils with 16 gauge round wire and the 16 gauge twisted square wire on the smaller side of a Wubbers Extra Large Round Mandrel Pliers.
Step 30
Cut the coils into jump rings using your preferred method for cutting jump rings.
Step 31
Close the round wire jump rings. Two flat nose pliers or a flat nose and chain nose pliers are usually used to close jump rings. However, it may be easier to use two inexpensive wide flat nose pliers to close the larger jump rings used here. It is important that the cut ends of each jump ring are perfectly flush or the ring seams will not fuse or connect well with solder.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links

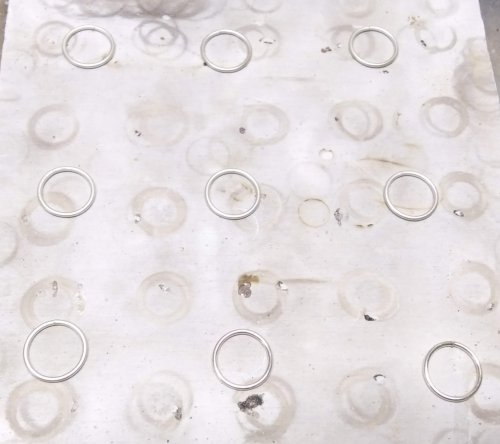

Step 32
Space the closed rings out on a Solderite board. Fuse the ring seams or use a small bit of medium paste solder under each seam and heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links

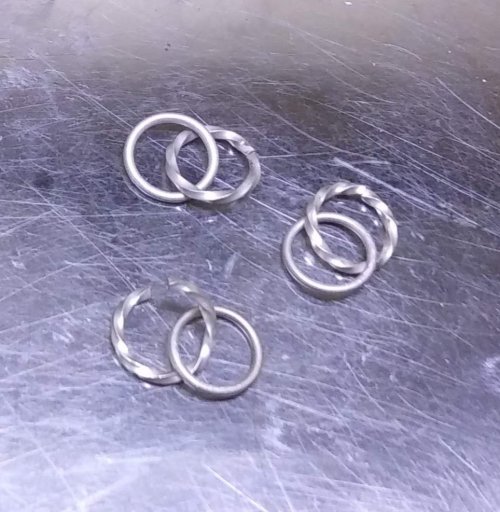

Step 33
Open the twisted jump rings. Connect one twisted jump ring to a fused/soldered ring from Step 22. Close the ring. If the square sides of the twisted jump ring do not match up, the ends can be tweaked a bit with two chain nose pliers.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 34
Place the unit on the edge of a Solderite board, as shown. Place a small amount of medium paste solder under the seam of the twisted ring. Heat until the solder flows.
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Judy Larson's Wire Links 7, 8, 9, and 10 - , Findings & Components, Toggles & Clasps, Earwire & Headpin, Butane Torch, Soldering, Solder, wire links
Step 35
Now that all the links are made................

Pickle and rinse all the links to remove any fire scale or light discoloration. Rinse and dry. Rinse and dry.

Use 320, 400, and then 600 grit sandpaper or sanding pads to clean and refine the solder joins where needed.

Tumble in shot, water and a drop of dish liquid for several hours.

Remove the links from the tumbler and rinse. If the all the parts of each piece are still attached, the solder joins are likely permanent. If not, the old solder should be filed off and the pieces soldered together again.

Note: Wait to patina until all the links are connected in the desired manner.
