Byzantine Diamond Chainmaille

by Natalie Patten

Category: Chain Maille
Technique(s): Chain Maille
Skill Level: Intermediate

Construct these beautiful chainmaille components using three sizes of jumpring to create a range of striking jewelry.

They can be used individually to make pendant bails or earring connectors or linked together to create beautiful bracelets. Jumpring sizes can be adapted to suit your preference.

Materials

18 Gauge Round Dead Soft Argentium .940 Silver Wire

H19-18D

Lesson Quantity: 100.00 pieces
Purchase Quantity: 1.00 5FT
Price: $45.71
Gold Club Price: $34.28

Add to Bag

Make or buy multiples of Jump Rings: ID 3mm, 4mm, 7mm- all 18 gauge in choice of metal

Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each

Add All Items to Cart

Tools

18 Piece Mini Punch Set With Auto Center Punch

G7-14

G7-14
Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each
Price: $22.95
Gold Club Price: $17.21

Add to Bag

Basic Sawing Kit

G15-7

G15-7
Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each
Price: $34.95
Gold Club Price: $26.21

Add to Bag

Lindstrom Multi-Purpose Shear, 5-3/4 Inches

G2-6000

G2-6000
Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each
Price: $39.95
Gold Club Price: $29.96

Add to Bag

20 X 15 Inch Padded Work Mat

MAT-620.00

MAT-620.00
Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each
Price: $14.95
Gold Club Price: $11.21

Out of Stock

Flat Nose Wire Pliers

G2-506

G2-506
Lesson Quantity: 2.00 pieces
Purchase Quantity: 2.00 each
Price: $32.95
Gold Club Price: $24.71

Add to Bag

Jump Ring Opener/Holder - Pack of 1

G10-39

G10-39
Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each
Price: $3.47
Gold Club Price: $2.60

Add to Bag

Optional Tools

The Quad Jump Ring Former

DUR-1312

Lesson Quantity: 1.00 pieces
Purchase Quantity: 1.00 each
Price: $388.00
Gold Club Price: $291.00

Add to Bag

Add All Items to Cart

Instructions

Step 1

Jump Ring Count for Each Connector

4 small rings - 3mm ID

24 medium rings - 4mm ID

1 large ring - 7mm ID

NOTE: It's also a good idea to have a few extra 3mm or 4mm rings on hand, since you'll use them to connect the pieces together.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , finished piece

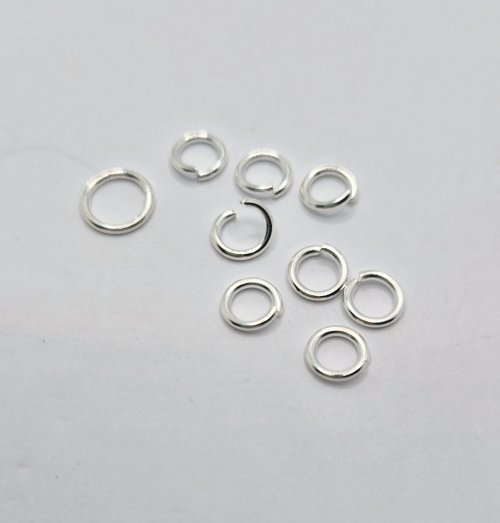

Step 2

Close the large jumpring fully and open up 8 medium jumprings.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Close the large jumpring

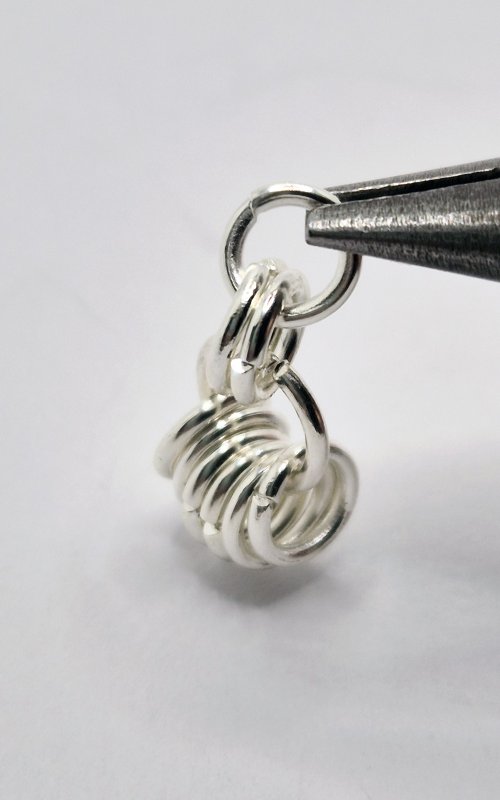

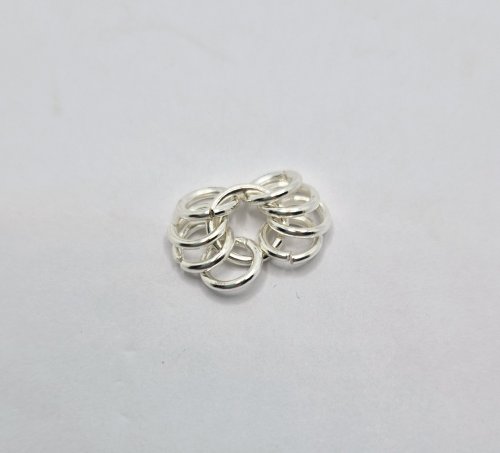

Step 3

Attach 8 of the medium rings to the large jumpring.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Attach 8 of the medium rings

Step 4

Divide each of the medium jumprings into pairs, by attaching another medium jumpring through them

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Divide each of the medium jumprings into pairs

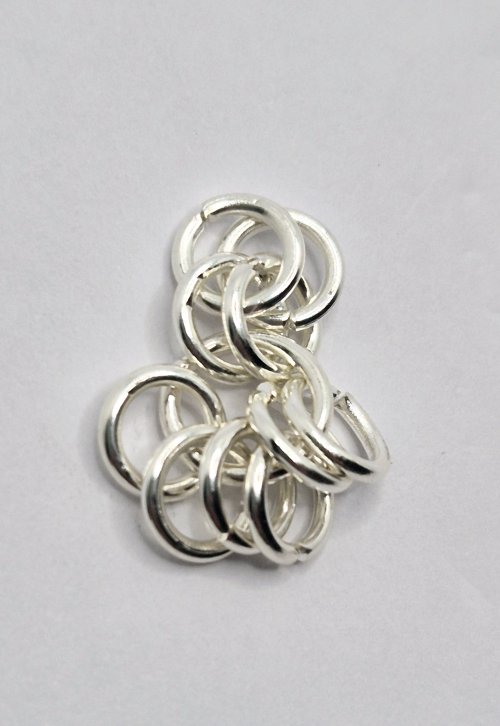

Step 5

Add on another medium jumpring through these two jumprings attached to the large ring, to double up.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Add on another medium jumpring

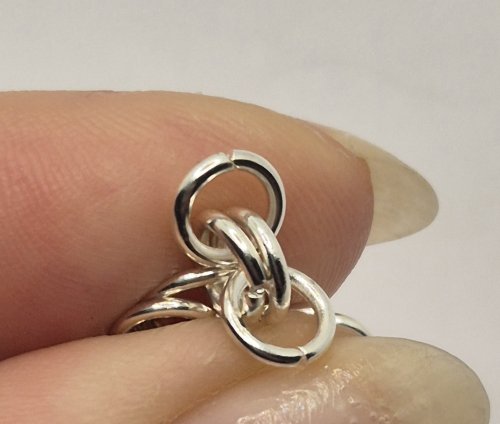

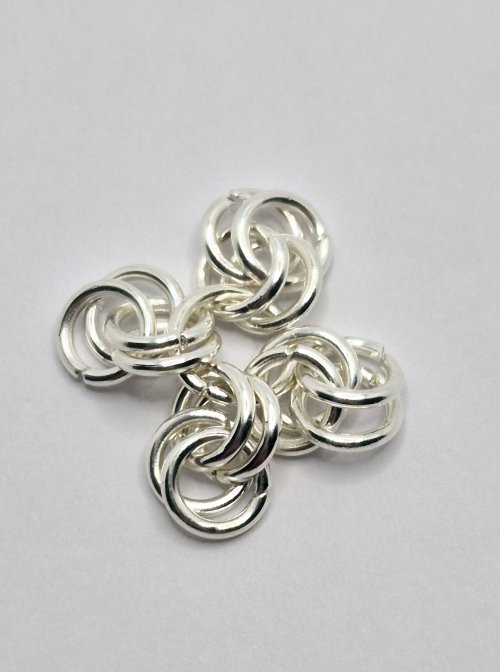

Step 6

Do this on each of the pairs, so that the large ring has four sets of two by twos attached.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Do this on each of the pairs

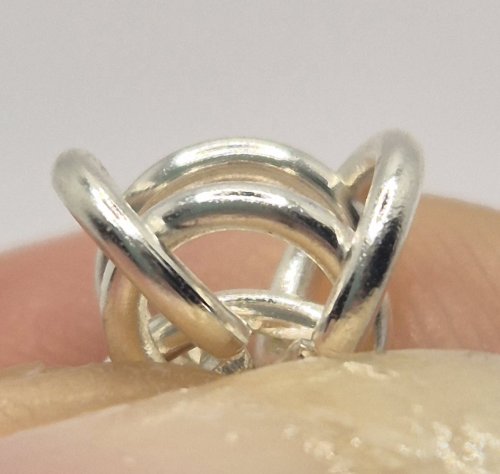

Step 7

Take one of the sets and create a Byzantine weave with them by folding one of the last rings towards you and the other ring behind.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Take one of the sets and create a Byzantine weave

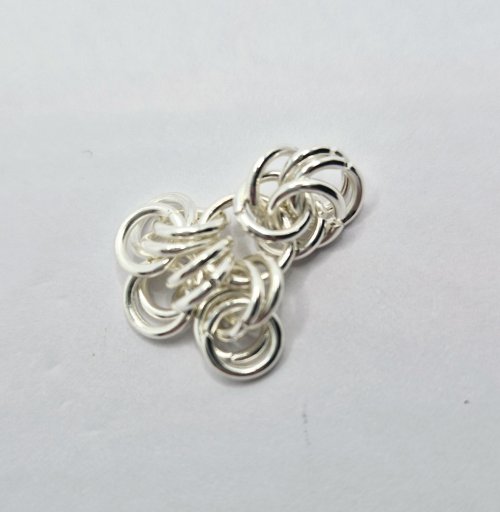

Step 8

Separate out the rings (attached to the large ring) to expose the rings that you have flipped forward and back.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Separate out the rings

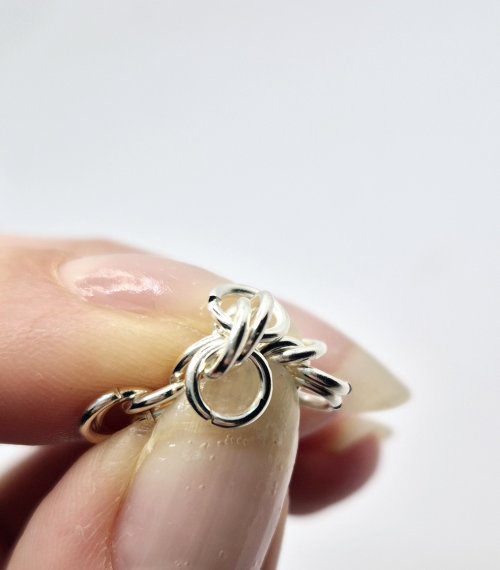

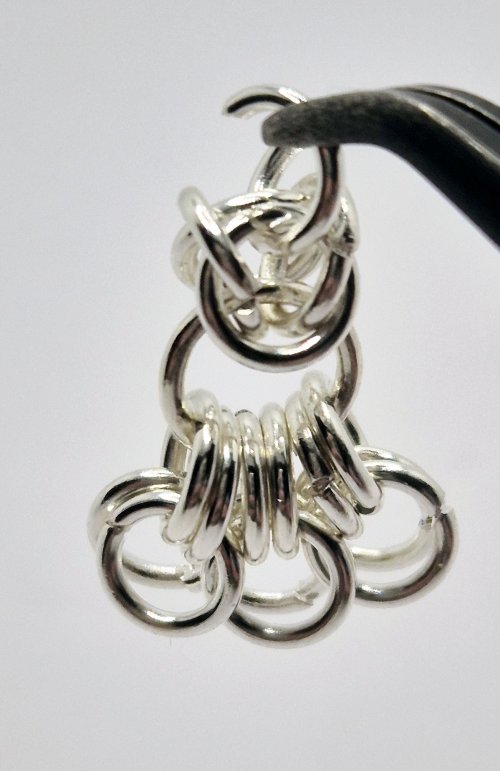

Step 9

Position another medium ring through the space in the centre of these rings to lock in place.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Position another medium ring

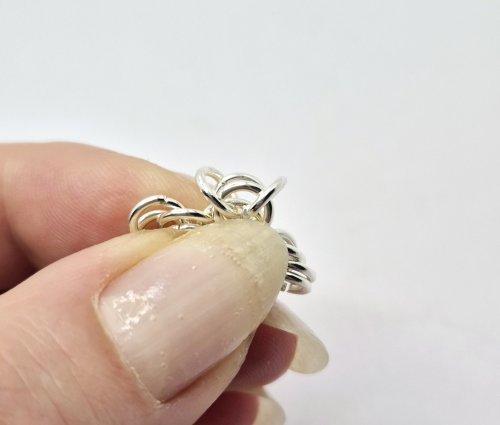

Step 10

Add another medium ring through next to it, to double up the Byzantine knot.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Add another medium ring

Step 11

Repeat this on the next section of two-on-two medium jumprings attached to the large ring and flip open this set.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Repeat this on the next section

Step 12

Separate out the rings to expose the flipped rings.

Step 13

Attach another two medium jumprings through this set to make another Byzantine section.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Attach another two medium jumprings

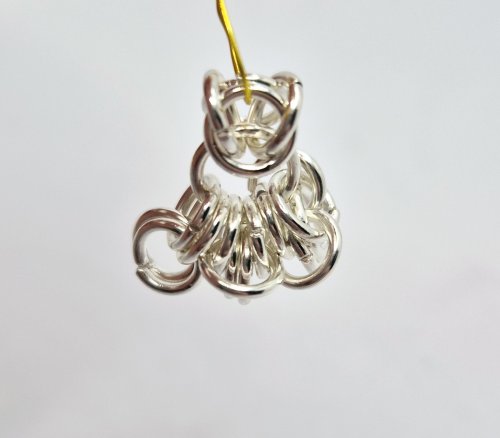

Step 14

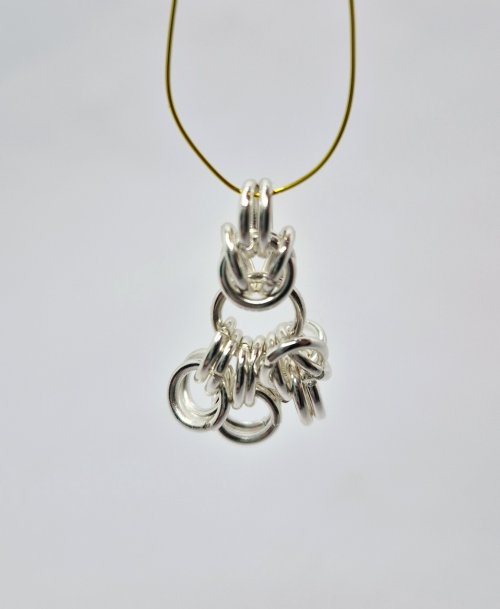

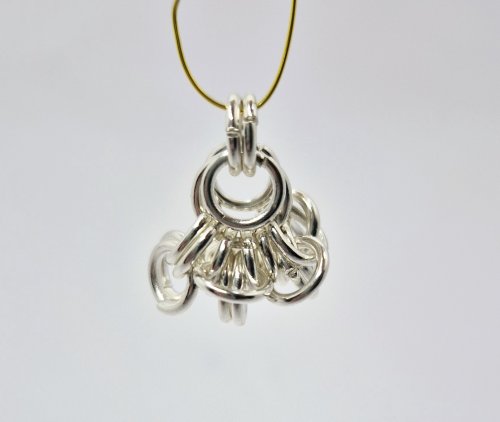

Work your way around the sections, positioning the jumprings to create a Byzantine weave on each.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Work your way around the sections

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Image 13b

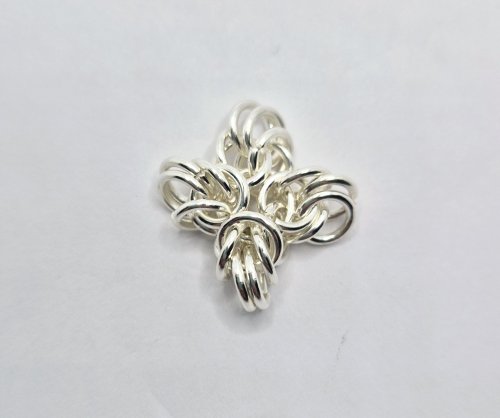

Step 15

You should now have four Byzantine segments attached to the large ring in the centre.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Attached the Byzantine segments to the large ring in the centre.

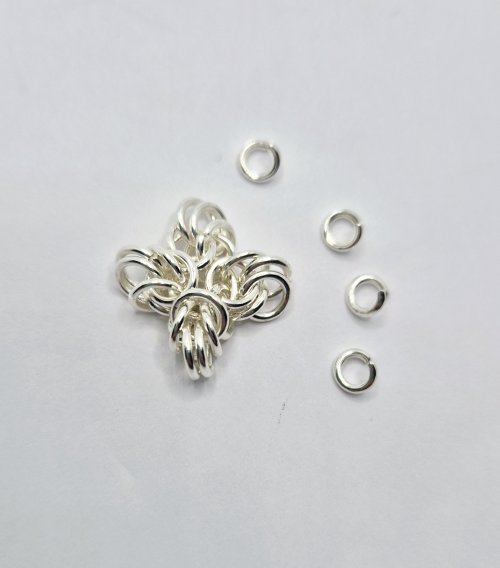

Step 16

Open up 4 small jumprings.

Step 17

Use a small ring to capture two rings from one Byzantine section and two rings from the Byzantine section next to it.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Use a small ring to capture two rings

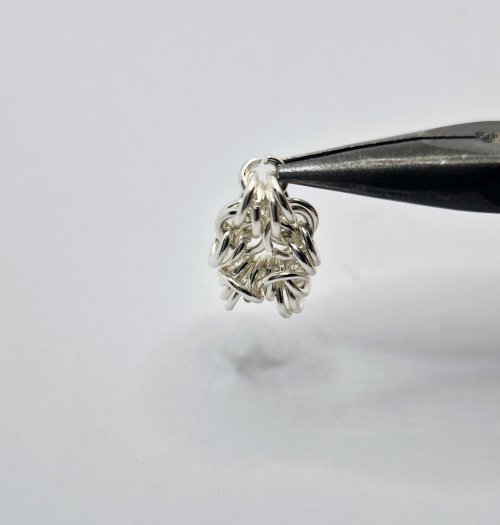

Step 18

Capture 4 medium jumprings with the small ring, to bring half of one section and half of another together.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Capture 4 medium jumprings

Step 19

Link the remaining two jumprings of this Byzantine section with the next two, to join them together

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Link the remaining two jumprings

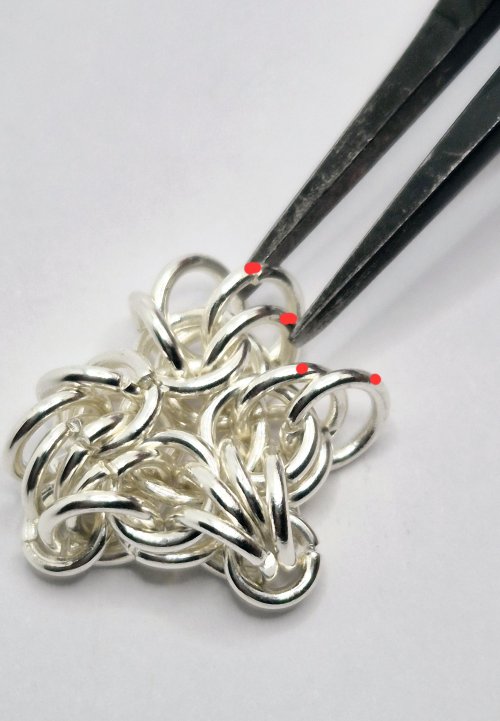

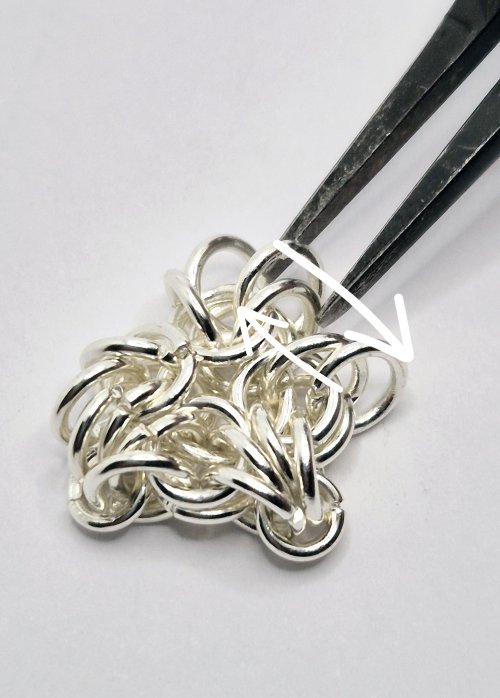

Step 20

The small jumpring should capture the four medium jumprings highlighted.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , capture the four medium jumprings

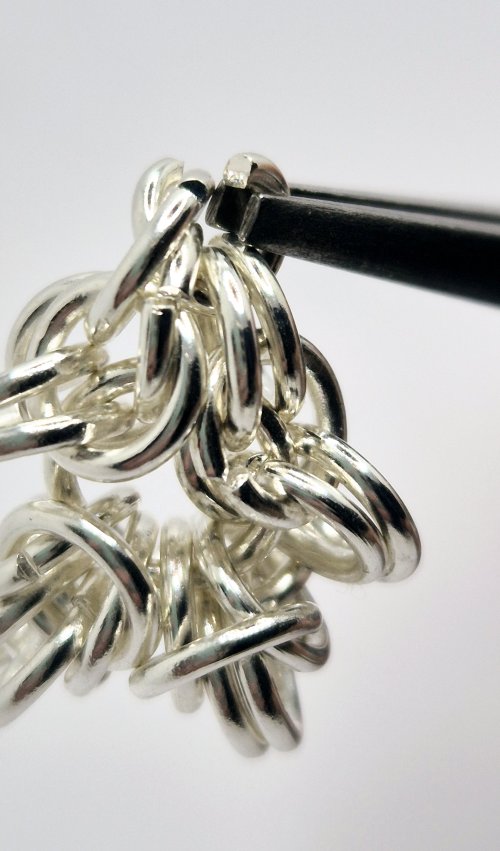

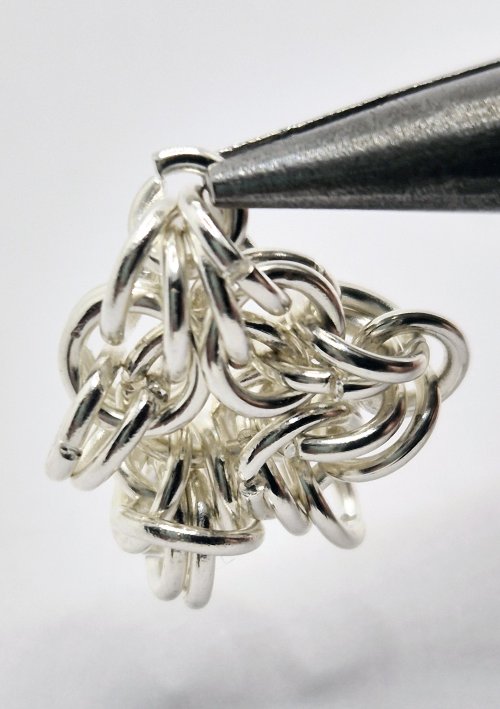

Step 21

Bringing these four rings together with the small jumpring (two from one segment and two from the segment next to it) will create a point

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Bringing these four rings together

Step 22

Capture the last four remaining jumprings with the small jumpring.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Capture the last four remaining jumprings

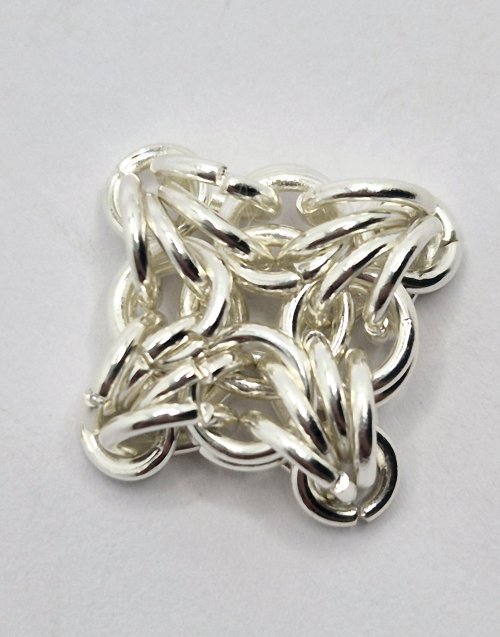

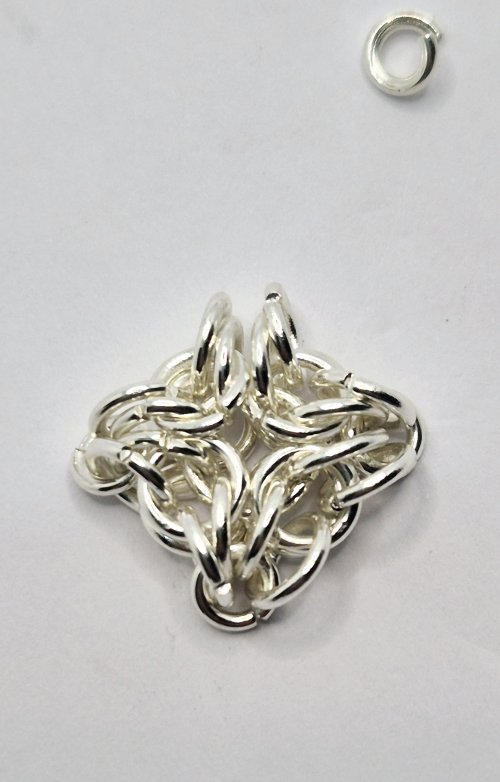

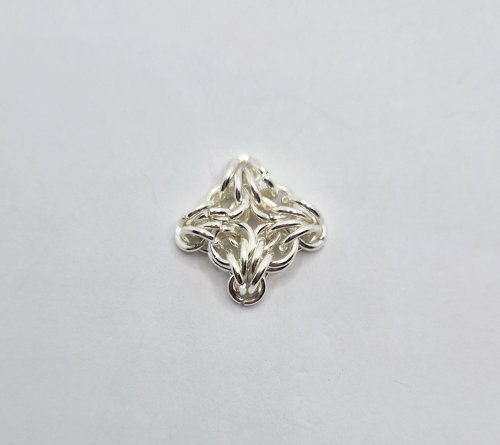

Step 23

You should now have four points on your component that forms a diamond shape.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , You should now have four points

Step 24

This Byzantine Diamond can now be used individually to create a bail for a pendant or a connector for an earring.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Byzantine Diamond can now be used individually

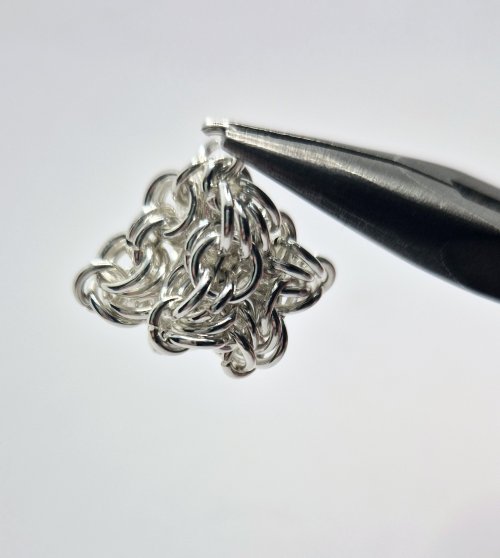

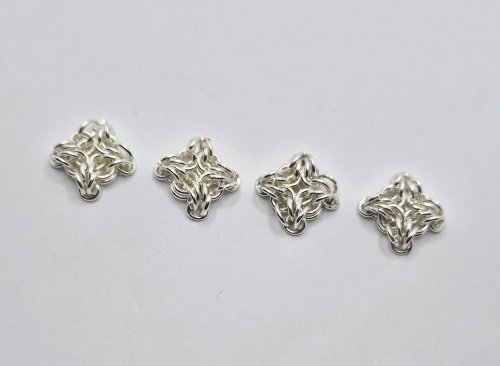

Step 25

Make multiples of your Byzantine Diamonds and link them together to create a chain.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Make multiples of your Byzantine

Step 26

They can be attached at the point with another jumpring.

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , attached at the point with another jumpring.

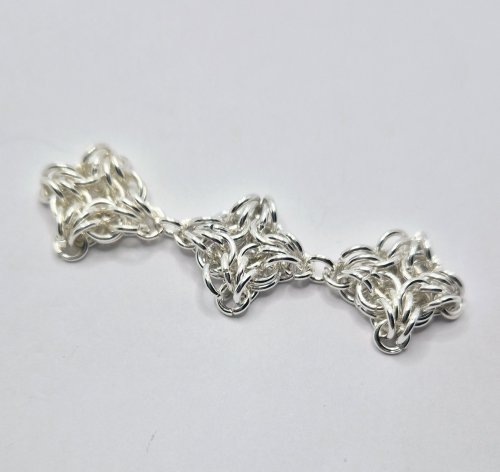

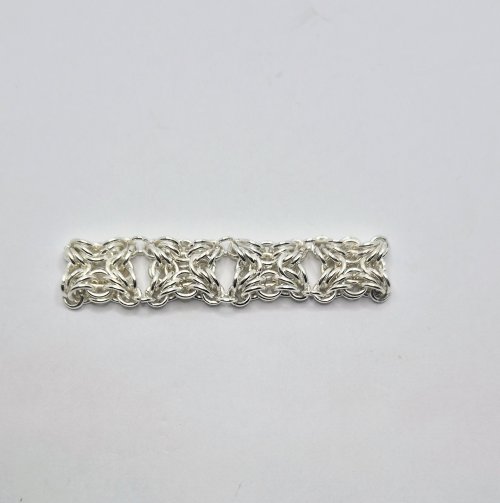

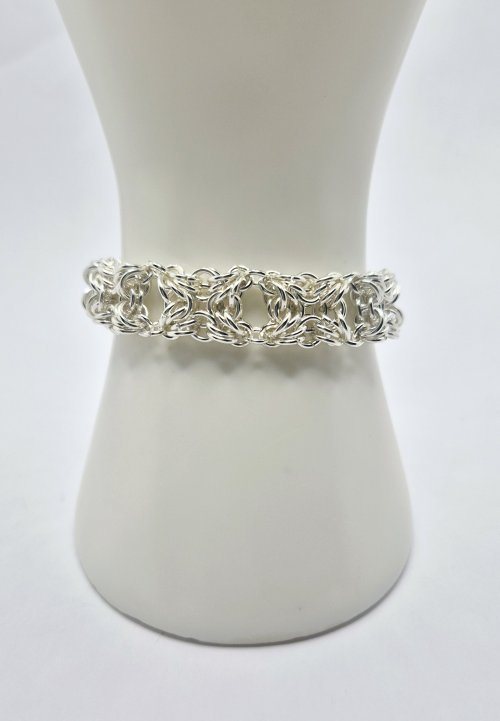

Step 27

They can be linked together in square or diamond arrangements to create beautiful chainmaille jewellery. (image 26a and 26b)

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , They can be linked together

Natalie Patten's Byzantine Diamond Chainmaille - , Chain Maille Jewelry, Chain Maille, chain mail, chainmaille, chainmail, , Image 26b
