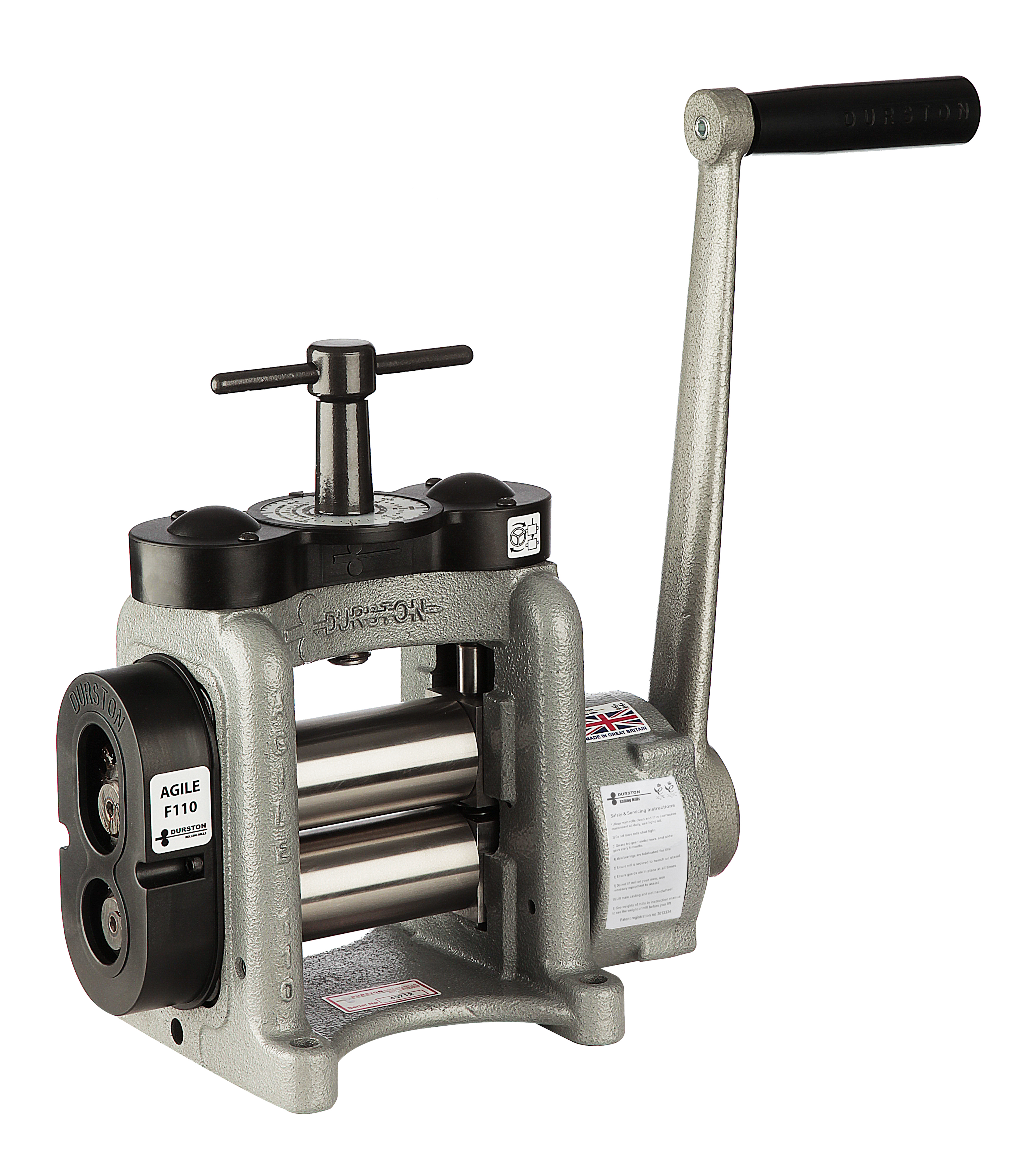

The Durston Agile F110 Rolling Mill is a top quality manufacturing tool. The F110 is a dedicated flat rolling mill for metal sheet rolling and does not include wire rolling grooves or side extensions. The all-new Agile F110 is a special edition to the range of Durston rolling mills. It is lighter than the DRM range by having finer frames, but it is designed to support the load without any compromise on quality. A traditional T-bar replaces the hand wheel, and the rolls are specially induction hardened to 64 RC and the main barrel to a depth of 6mm ensuring your rolls last a lifetime. The Agile F110's bearing block is fully supported, and the bearings are self-lubricating and completely maintenance-free. The rolls are not only finely ground but polished to ensure a perfectly rolled finish. The heavy duty 4-1 gearbox is unrivalled in the industry and makes turning so much more effortless. Behind the cover, you will find two additional gears to make rolling even smoother. Safety features include a protective guard around the top gears. The Agile F110 rolling Mill: part of Durston's award-winning range of products available since 1961.
WEIGHT | 28.5 kg |
---|---|
PRODUCT WEIGHT (KG) | 26KG |
PRODUCT LENGTH (MM) | 345 |
PRODUCT WIDTH (MM) | 200 |
PRODUCT HEIGHT (MM) | 320 |
GEARBOX | |
MAX. SHEET THICKNESS (MM) | |
ROLLER TYPE | |
ROLLER DIAMETER (MM) | 50 |
ROLLER LENGTH (MM) | |
SIDE EXTENSIONS | None |
RANGE |
